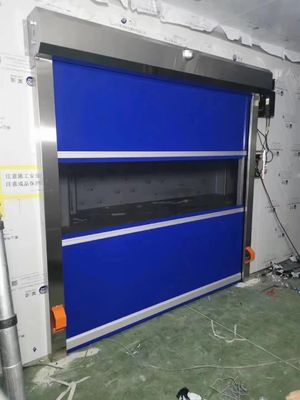

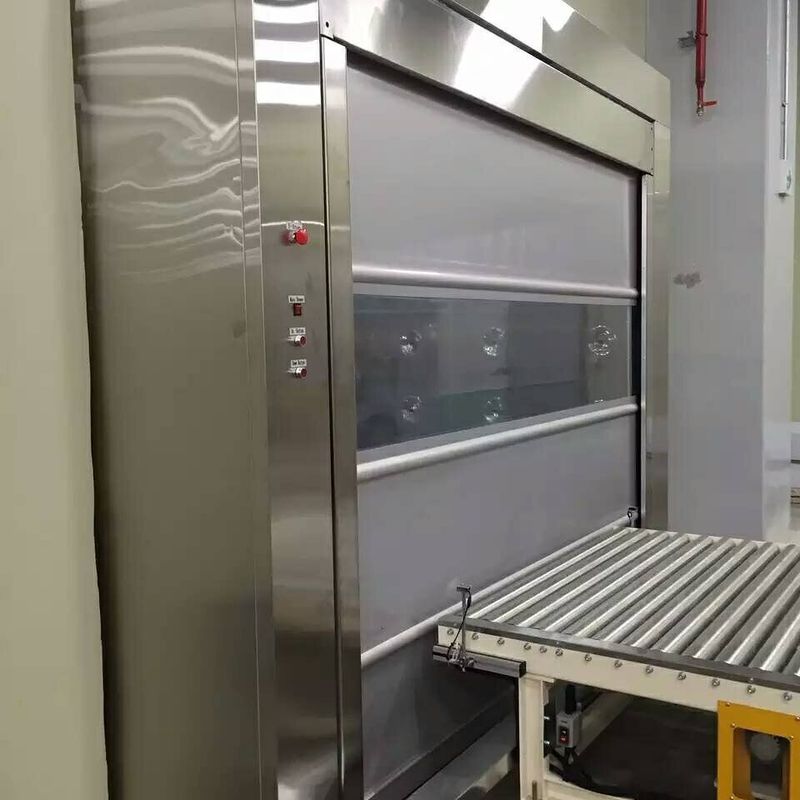

0.5-1.5m/S Opening Fast Speed Shutter Close Insulation 1176pa High Speed PVC Door
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DESEO |
| Certification: | CE/ISO9001 |
| Model Number: | HSD2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD 980/UNIT |
| Packaging Details: | plywood package |
| Delivery Time: | 7-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 unit per month |
|
Detail Information |
|||
| Structural Material:: | 1.5mm Thick Cole Rolled Steel Or 1.5mm Thick Staninless Steel. | Wind Strength:: | Wind Resistance Of Up To 1176pa. |
|---|---|---|---|
| Name: | High Speed Freezer Door | Opening&close Speed:: | 0.5-1.5m/s |
| Highlight: | 1.5m/s high speed freezer door,0.5m/s high speed freezer door,1176pa high speed freezer door |
||
Product Description
echnical Parameter:
| Tensile strength(wrap/weft) | 5700/5100N/5m |
| Tearing strength(wrap/weft) | 900/800N |
| Use temperature | -30°C- +70°C |
| Fire protection Level |
French standard NF-P92-503 Or German standard M2 DIN 4120 B1 |
The environments we have provided solutions to include:
1. Food Pharmaceutical
2. Bio-technology
3. Medical device manufacturing
4. Cosmetics
5. Refrigeration
6. Precision manufacturers
7. Chemical
8. Clean workshops
9. Electronics
10. Automotive
11. Air shower
12. Car wash
13. Supermarket
And so on
| Technology Category: | Technical Paramerers |
| Useage: | Widely used in food chemistry textile electronics supemarket refrigeration logistics,warehousing and other places. |
| Size: | Maximum size:W6000*H6000mm exceed this range according to the site specific production process. |
| Wind strength: | Wind resistance of up to 1176pa. |
| Opening&close speed: | 0.5-1.5m/s |
| Color curtains: | Red , orange , yellow , green , blue , black , gray ,transparent. |
| Structural material: | 1.5mm thick cole rolled steel or 1.5mm thick staninless steel. |
| Drive System: | 220V/380V 50Hz IP55 power 0.55KW-6.5KW |
| Door Control System: | PLC converter adjustable delay off,greatly improving the efficiency in the use and life of German goods into the encoder. |
| Optional: | Geomagnetism,radar,light curtain,infrared,remote control or by hand switch. |
We offers a full line of refrigeration room doors for walk-in coolers to drive-in freezers. Our high speed freezer doors
for the cold storage and freezer industries have the ability to maintain temperatures as low as -22 degrees. The
refrigeration room doors open and close at high speed and soft bottom edges for safety purposes.
Heaters and blowers can also be installed to freezer doors to prevent condensation that could cause dangerous icing
on the floors.
Features
1)Safety
radar sensor,photo sensor,air safety bag include
2)Tightness
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
3)Power
SERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4)Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5)Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.
6)Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
